CRAFTSMANSHIP | IMD in-mold decoration process

IMD in-mold decoration process
IMD In-Mold Decoration can be divided into IMF/IML/IME and other processes. IMD process: printing, high pressure molding, punching, injection.

Full process equipment production operation, high-quality product appearance, bright colors never fade, high-touch surface nano-texture treatment, can combine product appearance and electronic circuits with touch switch functions, product application range. IMD process covers 3C communication product shells, automotive instruments, control panels, interior decorative panels, medical, home appliance shells, etc.

IMD PRODUCTION PROCESS
  • STEP. 01

    Film printing rolls

    STEP. 01

    Film texture treatment roll (Film)

  • STEP. 02

    Film printing

  • STEP. 03

    Positioning and punching

  • STEP. 04

    3D high pressure forming

  • STEP. 05

    3D punching

  • STEP. 06

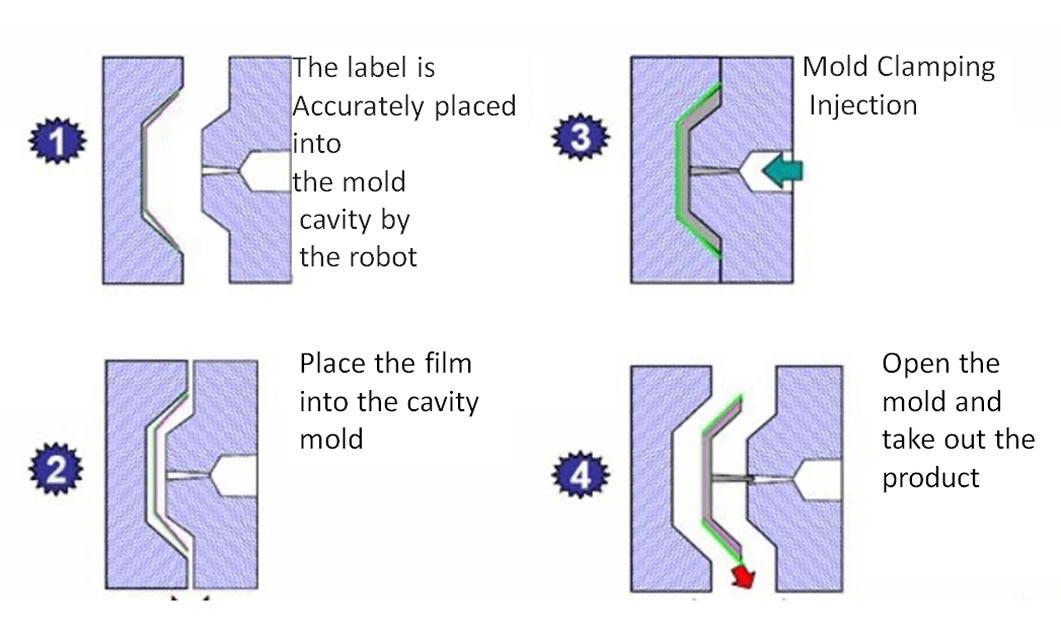

    Insert molding

  • STEP. 07

    Product inspection

  • STEP. 08

    Packaging and shipping

IMF － Insert Molding by forming film
IMF film coating and appearance description Can produce two different appearance effects (hair effect and high gloss effect)
